6.5/8/9.3 Watt LED Downlight Retrofit; 27K/30K/35K/40K/50K CCT; 4 Inch; Regressed Wafer; Round; Matte White Finish
Standard Information
Option:
Energy Star
LED
Prop 65
Refinement Options
Category:
Recessed
Sub Category:
Retrofits
Style:
Utility
Avg Rated Hours:
50000
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Diameter:
5.31
Dimmable:
Yes-Dimmable
Each Height:
5.51
Each Length:
5.51
Each Width:
3.15
Lumens:
600L/750L/900L
Tariff Code:
8539.52.0091
Warranty:
5-Years
Air Tight:
Yes
Amps:
0.080/0.085/0.090A

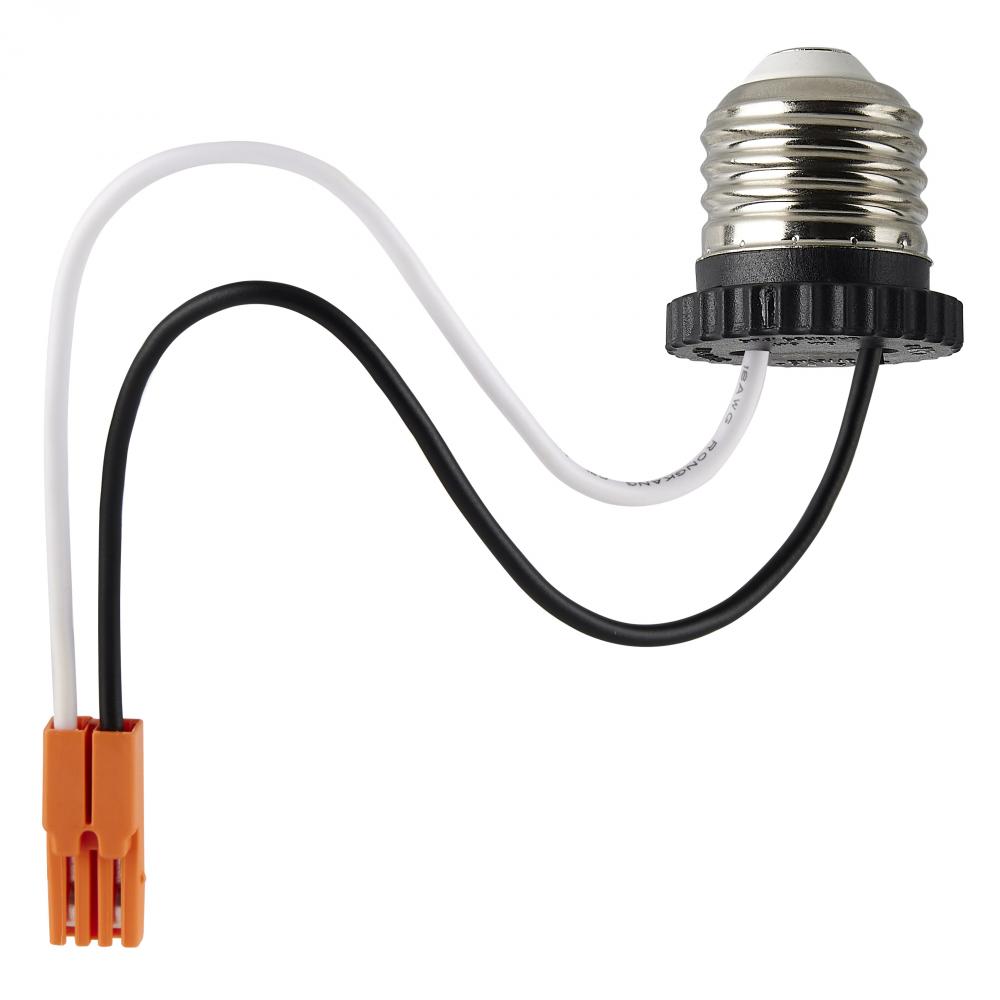

ANSI Base:
E26 Adapter
Beam Angle:
110
CA Prop-65:
Lead
Can Size:
4 in.
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
China
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimming Type:
Phase cut
Each Cube:
0.0553
Each Quantity:
1
Efficacy:
92.31/93.75/96.77 LPW
ES Category:
Downlight Solid State Retrofit
ES Unique ID:
ESID-3994238
FCC Compliant:
Yes
Feature 1:
Field Selectable (3 wattages and 5 CCT)
Feature 10:
5 Year Warranty
Feature 2:
Regressed Trim Design for Reduced Glare
Feature 3:
Non-Conductive "Dead-Front" Trim
Feature 4:
4-Inch Round, White Finish
Feature 5:
Airtight Rated
Feature 6:
90 CRI High Quality Illumination
Feature 7:
Dimmable
Feature 8:
Wet Location Rated
Feature 9:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Round
IC Rated:
Yes
Incandescent Equivalent:
65W
Indoor Outdoor:
Indoor
JA8 Compliant:
Yes
Lens Finish:
Matte Frosted
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO's S11895 is a 4-inch, regressed PRO Series LED wafer-style retrofit downlight designed to deliver high-performance illumination with a refined, glare-reducing appearance. It features field-selectable wattage (6.5W/8W/9.3W) and an on-unit swi
Material:
Plastic
Mounting Diameter:
4
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
50
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's PRO Series LED wafer-style retrofit downlights offer a sleek, high-performance lighting solution with effortless installation. Designed for versatility, these downlights come in 4-inch and 6-inch round models with a choice of flat-face or
Safety Listing:
cETLus - Classified
SDS class:
LED_Fixture
Short Description:
9WLED/DLR/4/FS/WR/RND/WH
Sloped Ceiling Compatible:
No
Specification Notes:
Default CCT setting is 2700K; Default Wattage setting is 8W
