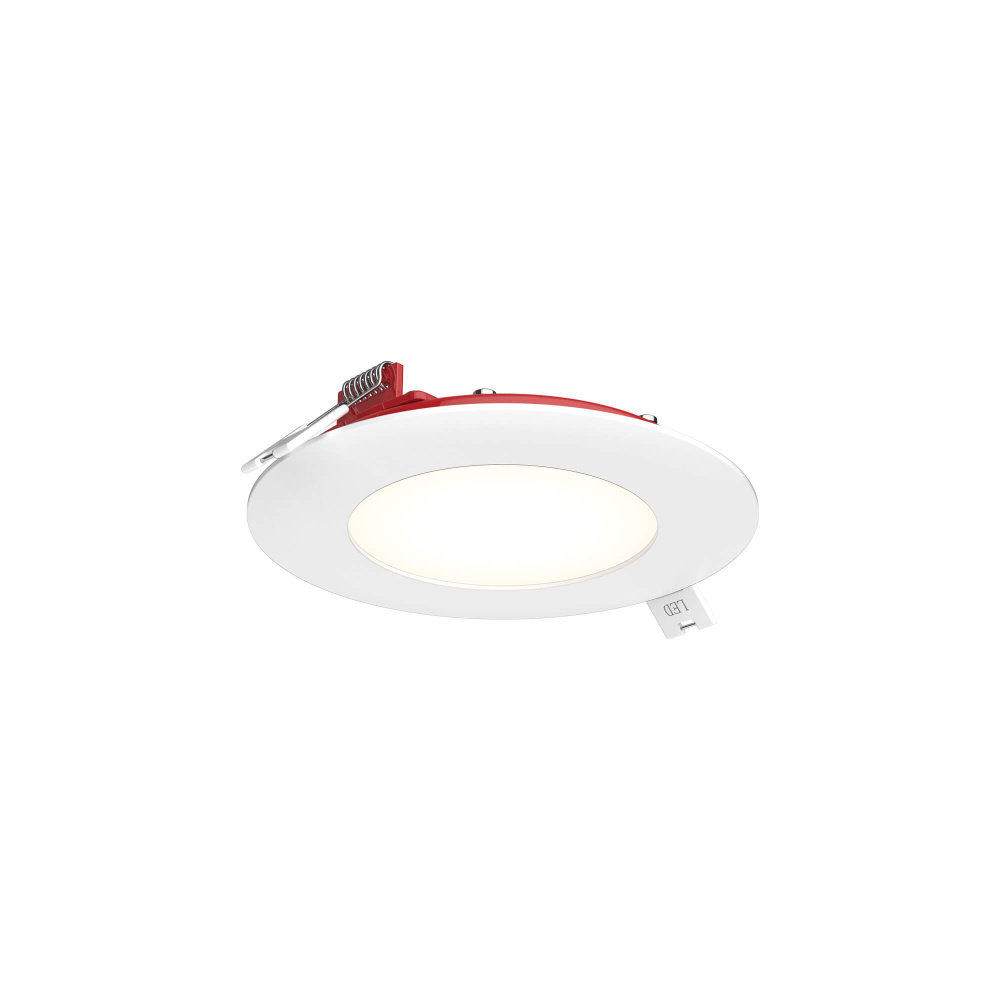

Multi CCT Slim Round Recessed 2 Hour Fire Rated
Image may not reflect selected features
/vendors/776/large/5004-3k-wh_03.jpg
additional image
additional image
Multi CCT Slim Round Recessed 2 Hour Fire Rated (6Y22J)
Our new LED Panel lights are more accessible than ever before. The sleek and minimal construction allows for the easiest of installations.
Downloads
Product Specification
Item #
6Y22J

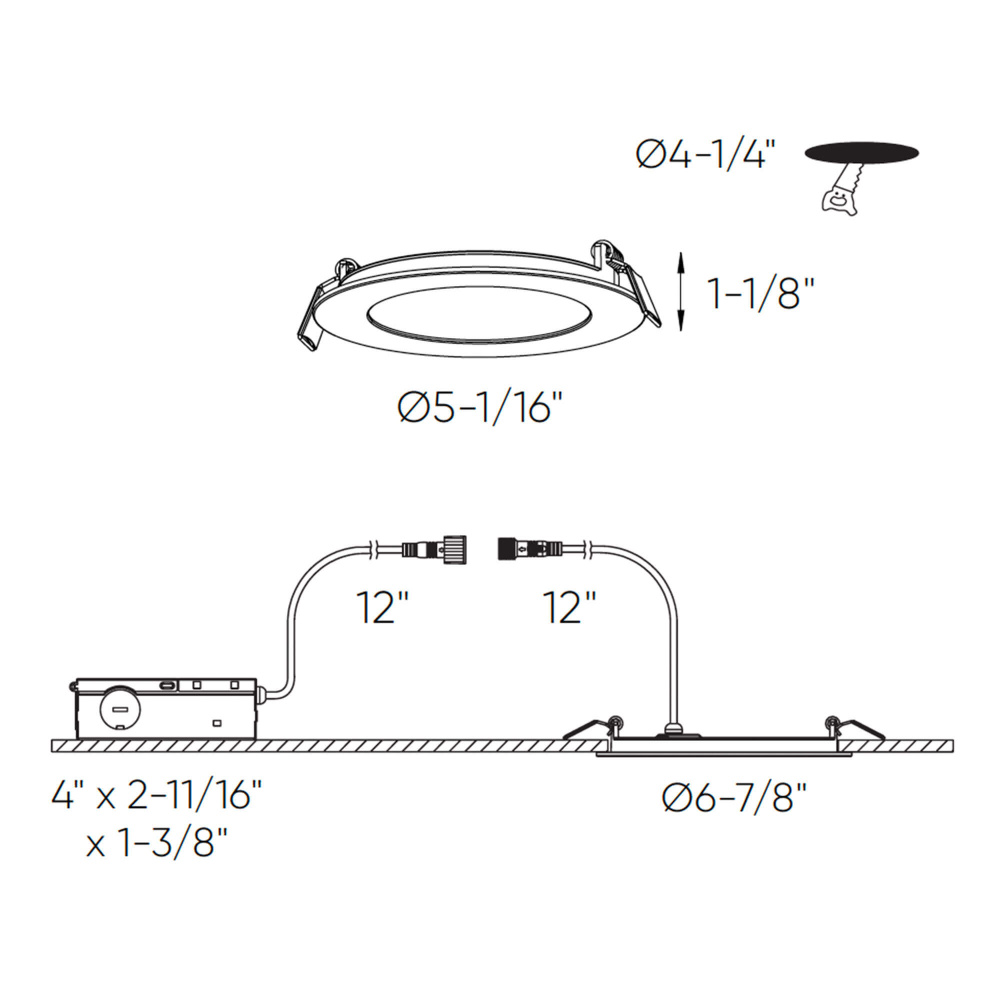

Dimensions
Height: 1.13"
Width: 5.06"
Length: 5.06"
Additional product details
Internal #
6Y22J
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
Title 24 , Outdoor , Wet Rated , Prop 65
Category
Recessed
Subcategory
Slim Panel
Finish
White
Family
Excel
Voltage
120 V
Number of Bulbs
1 Bulbs
Bulb Dimmable
Yes
Bulb Hours
50000
Kelvin
2700/3000/3500/4000/5000
Material
Aluminum
Ship Carton Height
3
Ship Carton Length
6
Ship Carton Width
5.25
Ship Weight
1.1
Warranty
5 Years Limited
Weight
1
Air-Tight (ASTM E283--4)
Yes
Beam Angle
110°
Bulb CRI
80
Country of Origin
China
Delivered Lumens
825
Dimmer Type
Triac/ELV
Energy Star
No
IC Certification
Yes
Indoor
Yes
IP Rating
IP44
JA8
Yes
Lens Material
Plastic
Location Rating
Wet Rated
Max Wattage
11 W
Maximum Working Temperature
40°C
Minimum Working Temperature
-20°C
Outdoor
Yes
Prop 65
Yes
Safety Rating
ETL Approved
Shipping Master Height
11
Shipping Master Length
16
Shipping Master Quantity
20
Shipping Master Weight
18
Shipping Master Width
12.5
Title 24
Yes
Wiring
Hardwired


Other Details:
  • 2-hour fire-rated without additional housing or hardware (in accordance with UL 263, ASTM E119, and CAN ULC S101)
  • Every fixture includes a junction box with an integrated driver
  • IC certification (suitable for direct contact with insulation)
  • Over 35,000 hours of service life
  • Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
