Multi CCT Slim Round Recessed Panel Light : 6Y22A

No Image
Available

Image may not reflect selected features

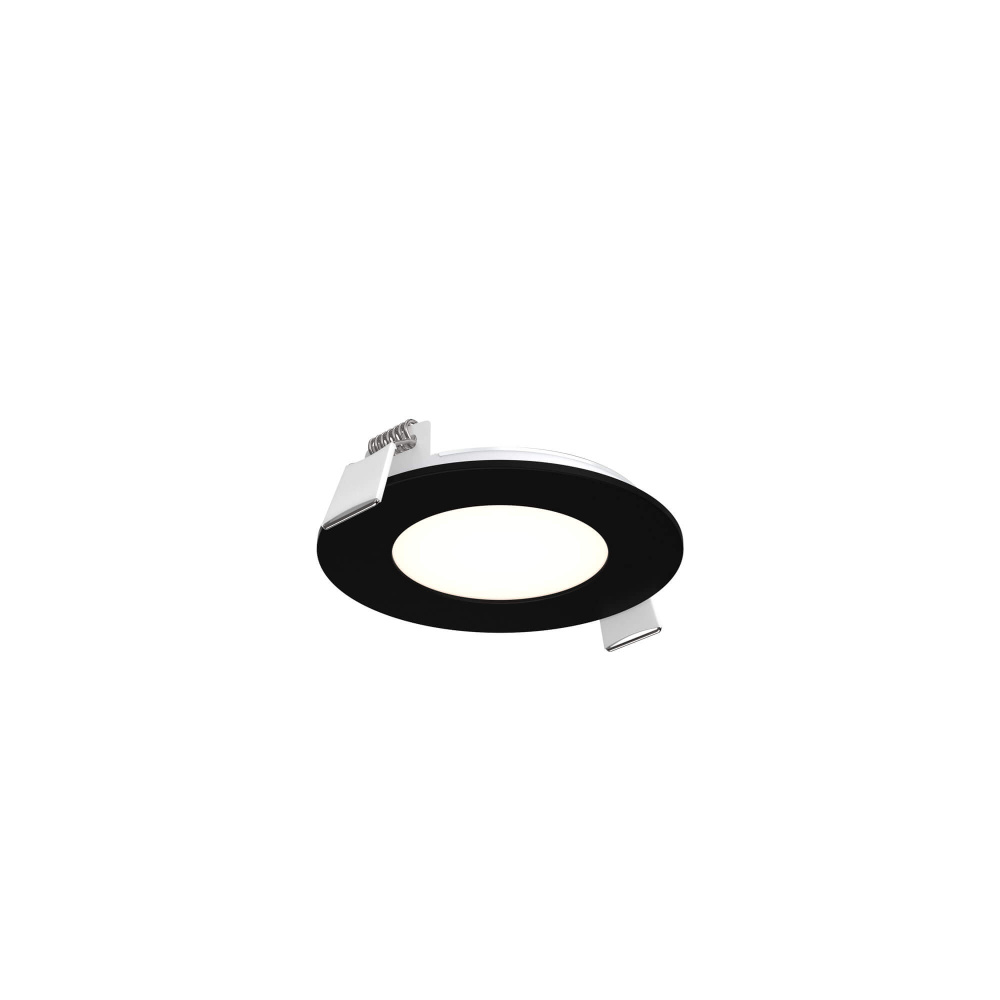

Multi CCT Slim Round Recessed Panel Light (6Y22A)

Our new LED Panel lights are more accessible than ever before. The sleek and minimal construction allows for the easiest of installations.

Downloads

Click Here to View Instruction Sheet

Click Here to View Catalog Page

Click Here to View Spec Sheet

Product Specification

Item #

6Y22A

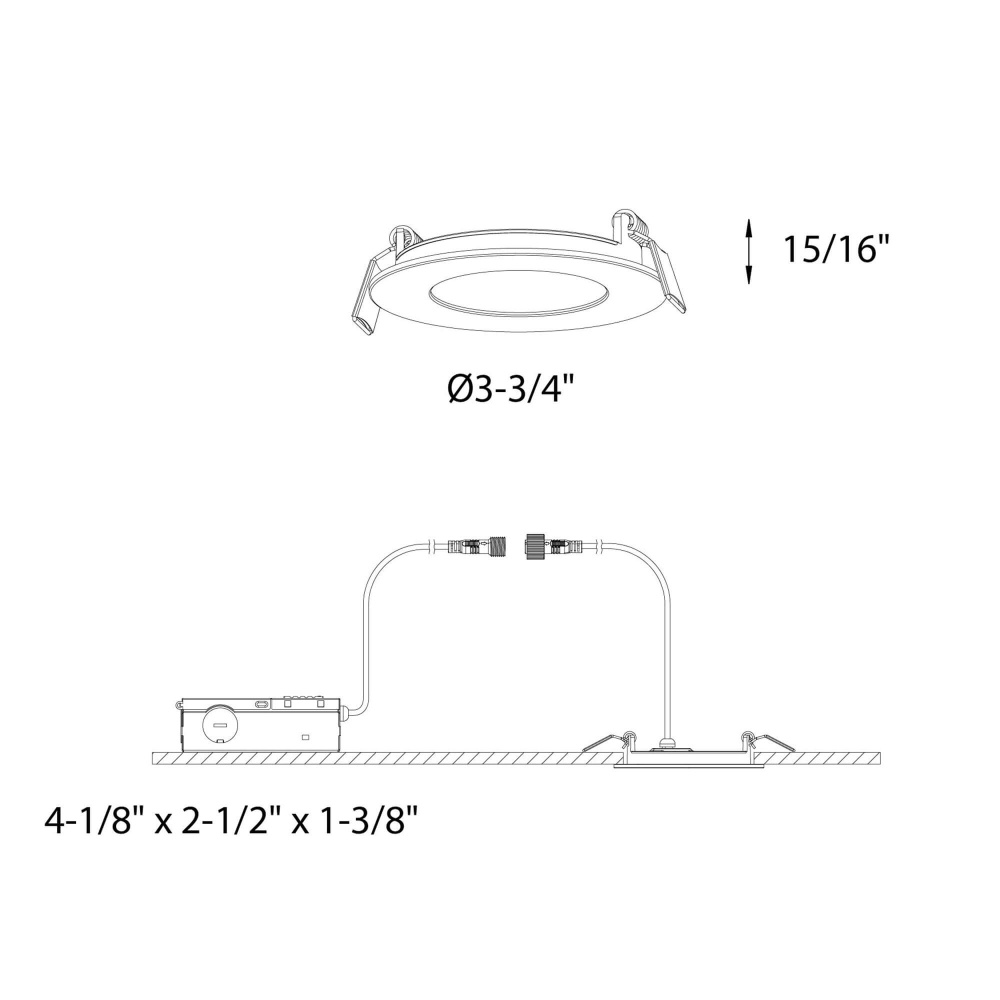

Dimensions

Height: 0.92"

Width: 3.75"

Length: 3.75"

Additional product details

Internal #

6Y22A

Category

Recessed

Subcategory

Slim Panel

Finish

Black

Family

Excel

Voltage

120 V

Number of Bulbs

1 Bulbs

Bulb Dimmable

Yes

Bulb Hours

50000

Kelvin

2700/3000/3500/4000/5000

Material

Aluminum

Ship Carton Height

2.75

Ship Carton Length

5.75

Ship Carton Width

5.25

Ship Weight

1.1

Warranty

5 Years Limited

Beam Angle

110°

Bulb CRI

Country of Origin

China

Delivered Lumens

600

Dimmer Type

Triac

Indoor

Yes

JA8

Yes

Lens Material

Plastic

Location Rating

Wet Rated

Max Wattage

8 W

Maximum Working Temperature

40°C

Minimum Working Temperature

-20°C

Outdoor

Yes

Safety Rating

ETL Approved

Shipping Master Height

9.3

Shipping Master Length

Shipping Master Quantity

Shipping Master Width

11.5

Title 24

Yes

Wiring

Hardwired

Other Details:

5-year warranty
Every fixture includes a junction box with an integrated driver
Over 35,000 hours of service life
Smooth 360° wide spread
Suitable for wet locations

Finish

Additional options that would change other selections

Call for Price

Qty:

BASE PRICE:

/ / 1

($18.77 / 1)

Add To Cart

Add To Estimate

Add To Wishlist

Save To Compare

Availability:

Manufacturer availability unknown.
